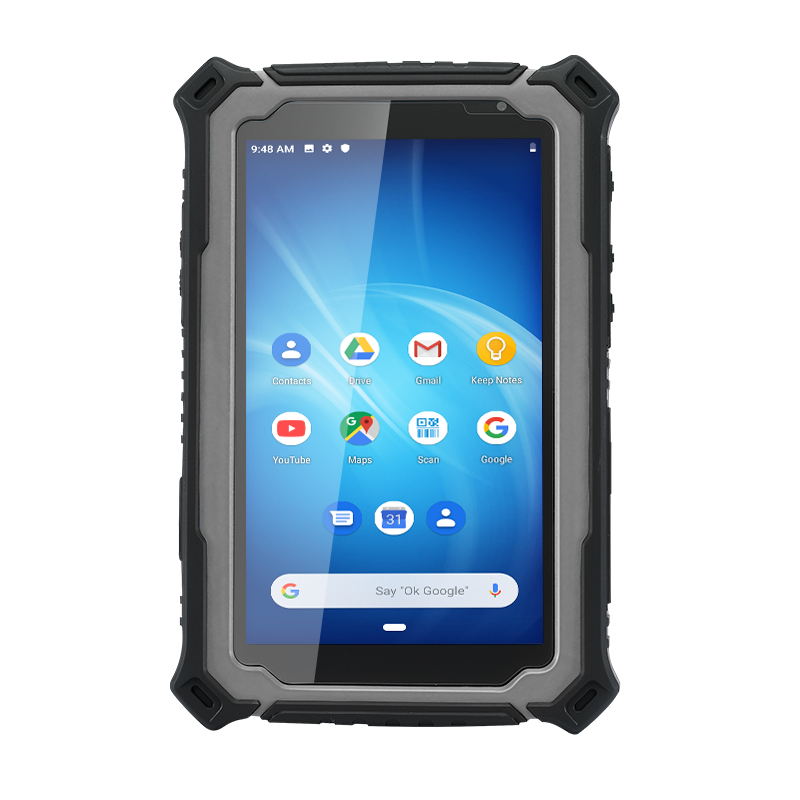

R71 Rugged industrial-grade data collection tablet PC

Item No.: R71
R71 has 7 inch HD screen with 1000nit,Sunlight readable , based on a MTK Helio P60 Octa-core processor and 4G communication technology, and 10000 mAh  battery.Use Android system with GMS certification and support Safeuem EDM system.

1. MIC 2. Camera Button 3. SOS Button 4. 8 Pin Pogopin(Optional serial port) 5.Handset Jack (Sealed Cover)
6.SMA connector (Optional)  7. Light sensor  8. Sub Camera  9. Type-C (Sealed Cover) 10. Power Button
11. Reset Button 12. Volume Up 13. Volume Down  14. TF-card (Sealed Cover)  15. SIM-card (Sealed Cover)
16. Main Camera 17. Pogo pin(Optional)  18.Speaker


CPU MTK P60(ARM A73 2.0GHz Octa-core)
GPU Arm Mali--G72 MP3
Internal Memory  128G
External Memory        Micro SD card ( T-FLASH card),  max 128GB
Main Camera 13.0MP(AF) with flash led
Sub Camera 5.0MP
Battery  10000mAh
Display  7 inch IPS/AFFS  720*1280 HD industrial 1000nit Sunlight Readable
Touch Panel Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
SIM Card 1.8/3.3V SIM card
TF Card Micro SD card ( T-FLASH card) ;max 128GB
Headphone 3.5mm (CTIA)
Data interface USB Type-c 24pin support OTG
UART(optinal) UART TTL3.3 X2 onboard
RS232(optinal) RS232X1(M8-5pin connector or Pogopin-6pin connector)
Gravity sensor support
Motion sensor support
Direction Sensor  support
Magnetic Field Sensor support
Gyro sensor  support
Rotation Vector  support
Light-sensor support
Acceleration sensor  support
Charger 5.0V 2A-10W
Navigation GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
Size 202*138*22mm(L×W×H)
Weight 700g
Color & Material  Black&Gray
Communications & Networking
Phone Call              GSM /WCDMA/CDMA 1X/VoLTE
2G Band GSM(B2/3/5/8)
3G WCDMA 3.75G (HSDPA+ 42.2Mbps,  HSUPA+ 11.5Mbps),EVDO
3G Band WCDMA(B1/2/5/8),Evdo: BC0/BC1 CDMA: BC0/BC1
4G FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink
4G Band TD-LTE(B38/39/40/41);FDD LTE(B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28)
WI-FI Dual-band (2.4GHz/5Ghz) single stream    802.11 a/b/g/n/ac
Bluetooth 4.2 Low Energy (LE)
Industrial & Reliability Design
Shake-proof 1-19Hz/1.0mm; 19-200Hz/1.0g
Dropproof /IK  MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
Waterproof Class 7 ( IEC 60529 )
Dustproof Class 6 ( IEC 60529 )
Reliability MTBF>5000h;MTTR<0.5h
Operating temperature           -10°C to  50°C
Storage Temperature   -40°C to  80°C
RH 5% to 95% (No condensation)
Operating Altitude  Max: 4,500 m(15,000 feet)
Certification 3C /FCC/CE/ROHS/IP67(IEC 60529)
Language                                    English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch,French, Polish,
Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese,Hindi, Hebrew, Simplified, Chinese,Chinese Traditional,etc
OS Android 10.0 / 11.0
Package/Warranty terms/OEM
Warranty                                       24 months
OEM/ODM         Support
Package USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit(optional)
LF RFID data collection
125K LF ID Module LF RFID,125K
134 LF RFID Module LF RFID,134k Animal module
HF RFID/NFC
Frequency 13.56MHz
Protocol standard ISO14443A/B,ISO15693,NFC
Label standard M1(S50、S70)、CPU、NFC
Read-write distance 2-5cm
UHF RFID
Air interface protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Operating spectrum range 902Mhz – 928Mhz / 865MHz – 868MHz(Optional)
Output range 0-33dbm
Output accuracy +/- 1dB
Output power level  +/- 0.2dB ,The label is sensitive and stable.
Reading distance >=1.8m(E41 tag)



Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.

Q1: Does the handheld can read QR code and common 1d bar codes?
A1: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...

Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

Q: What is the least order quantity (MOQ)?
A: We accept one unit for standard products.

Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.

Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance

Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.

Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.

Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.

Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
