| 1. power button |
2. Reset button |
3. Volumn up and down |
4. TP -card (Sealed Cover) |
5. SIM -card (Sealed Cover) |
| 6. Handset Jack (Sealed Cover) |
7. Sub camera |
8. Light sensor |
9.NFC(Optional) |
10. scan button |
| 11. Type-C (Sealed Cover) |
12. DC-Type (Sealed Cover) |
13. Main camera |
14. Type-A (Sealed Cover) |
15. MIC |
| 16.Pogo in |
17. UHF RFID （optional） |
18. Barcode Scaner (optional) |
19.speaker |
20.Nameplate |
Hardware
| CPU |
MTK P60（ARM A73 2.0GHz Octa-core） |
| GPU |
Arm Mali--G72 MP3 |
| RAM |
8G |
| Internal Memory |
128G |
| External Memory |
Micro SD card ( T-FLASH card), max 128GB |
| Main Camera |
13.0MP(AF) with flash led |
| Sub Camera |
5.0MP |
| Battery |
10000mAh |
| Display |
7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| Touch Panel |
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
IO/Sensor/Navigation
| SIM Card |
1.8/3.3V SIM card |
| TF Card |
Micro SD card ( T-FLASH card) ;max 128GB |
| Headphone |
3.5mm (CTIA） |
| Data interface |
USB 2.0 Type-c support OTG |
| Gravity sensor |
support |
| Motion sensor |
support |
| Direction Sensor |
support |
| Magnetic Field Sensor |
support |
| Gyro sensor |
support |
| Rotation Vector |
support |
| Light-sensor |
support |
| Acceleration sensor |
support |
| Charger |
5.0V 2A-10W |
| Navigation |
GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m） |
Appearance
| Size |
237*137*29mm（L×W×H） |
| Weight |
780g |
| Color & Material |
Black&Gray |
Communications & Networking
| Phone Call |
GSM /WCDMA/CDMA 1X/VoLTE |
| 2G |
GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band |
GSM（B2/3/5/8） |
| 3G |
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO |
| 3G Band |
WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G |
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink |
| 4G Band |
TD-LTE（B38/39/40/41）；FDD LTE（B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28) |
| WI-FI |
Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth |
4.2 Low Energy (LE) |
Industrial & Reliability Design
| Shake-proof |
1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK |
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof |
Class 5 ( IEC 60529 ) |
| Dustproof |
Class 6 ( IEC 60529 ) |
| Reliability |
MTBF>5000h；MTTR<0.5h |
| Operating temperature |
-10°C to 50°C |
| Storage Temperature |
-40°C to 80°C |
| RH |
5% to 95% (No condensation) |
| Operating Altitude |
Max: 4,500 m（15,000 feet） |
Certification/OS/Software
| Certification |
3C /FCC/CE/ROHS/IP65（IEC 60529） |
| Language |
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch,French, Polish,
Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese,Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc |
| OS |
Android 10.0 / 11.0 |
Package/Warranty terms/OEM
| Warranty |
24 months |
| OEM/ODM |
Support |
| Package |

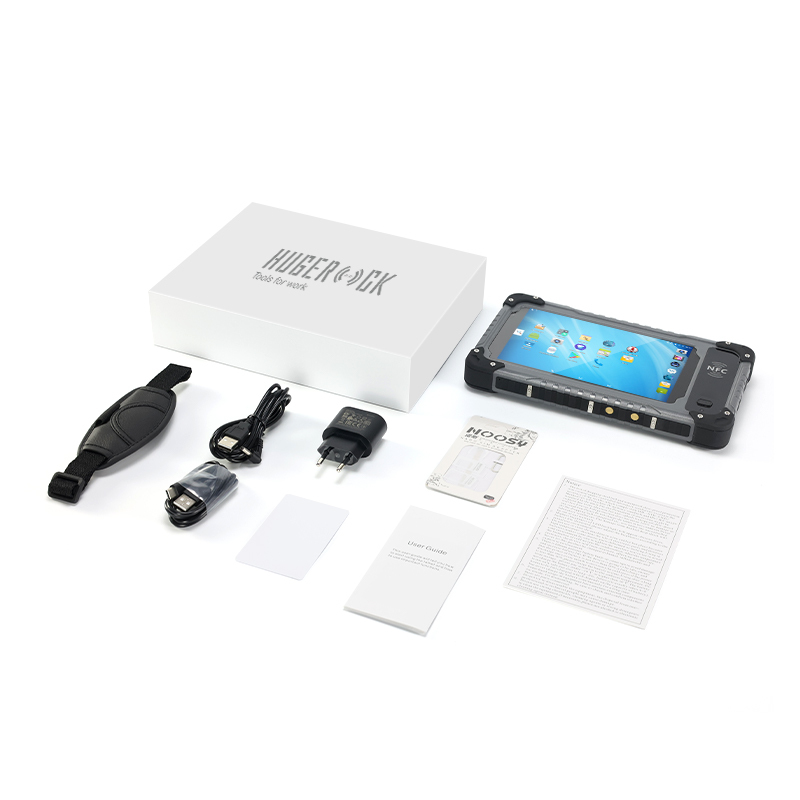

USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box（Can be customized logo）/Aircraft box/Toolkit（optional） |
LF RFID data collection
| 125K LF ID Module |
LF RFID，125K |
| 134 LF RFID Module |
LF RFID，134k Animal module
|
HF RFID/NFC
| Frequency |
13.56MHz |
| Protocol standard |
ISO14443A/B,ISO15693，NFC |
| Label standard |
M1(S50、S70)、CPU、NFC |
| Read-write distance |
2-5cm |
UHF RFID
| Air interface protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Operating spectrum range |
902Mhz – 928Mhz / 865MHz – 868MHz(Optional) |
| Output range |
0-33dbm |
| Output accuracy |
+/- 1dB |
| Output power level |
+/- 0.2dB ,The label is sensitive and stable. |
| Reading distance |
>=1.8m(E41 tag) |
Data Collection
| Scanning engine |
Newland N1 |
| 1D |
UPC/EAN,Code128，Code39，Code93，Code11，Interleaved 2 of 5，Discrete 2 of 5，Chinese 2 of 5，
Codabar，MSI，RSS,ETC |
| 2D |
Code39，Code128，PDF417，MicroPDF417，DataMatrix，Composite，RSS,TLC-39，QR code，
Micro QR code，Aztec，MaxiCode，Postal Code；US PostNet，US Planet，UK Postal，Australian Postal，Japan Postal,etc. |
Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q1: Does the handheld can read QR code and common 1d bar codes?
A1: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the least order quantity (MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
